What is the bending strength of 3k Carbon Fiber Twill Weave 200g?

In the realm of advanced materials, 3k Carbon Fiber Twill Weave 200g has emerged as a game - changer, offering a unique blend of strength, lightness, and aesthetic appeal. As a proud supplier of this remarkable material, I am excited to delve into the topic of its bending strength and explore the factors that influence it.

Understanding 3k Carbon Fiber Twill Weave 200g

Before we discuss the bending strength, let's briefly understand what 3k Carbon Fiber Twill Weave 200g is. The "3k" refers to the number of carbon filaments in each tow. A 3k tow contains approximately 3,000 individual carbon filaments. The twill weave is a type of textile pattern where the weft threads pass over one or more warp threads, creating a diagonal pattern. This weave pattern not only gives the carbon fiber fabric an attractive appearance but also enhances its drapability, making it easier to mold into complex shapes.

The "200g" indicates the fabric weight per square meter. A 200g carbon fiber fabric strikes a balance between being lightweight and providing sufficient strength for a wide range of applications.

Bending Strength: What It Means

Bending strength, also known as flexural strength, is a measure of a material's ability to resist deformation under a bending load. When a force is applied to a carbon fiber fabric in a way that causes it to bend, the bending strength determines how much stress the fabric can withstand before it fails. This property is crucial in applications where the material will be subjected to bending forces, such as in aerospace components, automotive parts, and sporting goods.

Factors Affecting the Bending Strength of 3k Carbon Fiber Twill Weave 200g

Fiber Quality

The quality of the carbon fibers used in the fabric is one of the most significant factors affecting bending strength. High - quality carbon fibers have a higher modulus of elasticity and tensile strength, which directly translates to better bending performance. Our 3k Carbon Fiber Twill Weave 200g is made from top - grade carbon fibers, ensuring excellent mechanical properties.

Weave Pattern

The twill weave pattern plays an important role in determining the bending strength. The diagonal pattern distributes the stress more evenly across the fabric compared to other weave patterns. This even distribution of stress allows the fabric to withstand higher bending loads without failure.

Resin Matrix

The resin matrix that holds the carbon fibers together also affects the bending strength. A high - quality resin with good adhesion to the carbon fibers can transfer the load effectively between the fibers, enhancing the overall strength of the composite. Our 3k Carbon Fiber Twill Weave 200g is typically paired with a high - performance resin that is carefully selected to optimize the bending strength and other mechanical properties.

Fabric Thickness and Layup

The thickness of the fabric and the way it is laid up can significantly impact the bending strength. Multiple layers of 3k Carbon Fiber Twill Weave 200g can be stacked and oriented in different directions to create a composite with enhanced bending resistance. The orientation of the layers is crucial, as it allows the fabric to resist bending forces from different angles.

Measuring the Bending Strength of 3k Carbon Fiber Twill Weave 200g

The bending strength of carbon fiber fabric is typically measured using a three - point or four - point bending test. In a three - point bending test, a specimen of the fabric is placed on two supports, and a load is applied at the center. The force required to break the specimen is recorded, and the bending strength is calculated based on the dimensions of the specimen and the applied load.

In a four - point bending test, the load is applied at two points between the supports, which creates a more uniform bending moment across the specimen. This test is often used for larger specimens or when a more accurate measurement of the bending strength is required.

Typical Bending Strength Values

The bending strength of 3k Carbon Fiber Twill Weave 200g can vary depending on the factors mentioned above. However, in general, it can have a bending strength in the range of several hundred megapascals (MPa). For example, under optimal conditions, our 3k Carbon Fiber Twill Weave 200g can achieve a bending strength of around 300 - 500 MPa. This high bending strength makes it suitable for a variety of demanding applications.

Applications of 3k Carbon Fiber Twill Weave 200g Based on Bending Strength

Aerospace

In the aerospace industry, weight reduction is crucial for fuel efficiency. 3k Carbon Fiber Twill Weave 200g's high bending strength and low weight make it an ideal material for components such as winglets, fairings, and interior panels. These components need to withstand bending forces during flight while keeping the overall weight of the aircraft down.

Automotive

In the automotive sector, carbon fiber is used to improve performance and reduce emissions. 3k Carbon Fiber Twill Weave 200g can be used in parts like spoilers, hoods, and chassis components. The high bending strength ensures that these parts can withstand the stresses of high - speed driving and cornering.

Sporting Goods

In sporting goods, such as tennis rackets, golf clubs, and bicycle frames, 3k Carbon Fiber Twill Weave 200g provides the necessary strength and flexibility. The high bending strength allows athletes to generate more power while using the equipment, enhancing their performance.

Why Choose Our 3k Carbon Fiber Twill Weave 200g

As a supplier, we are committed to providing the highest quality 3k Carbon Fiber Twill Weave 200g. Our products are manufactured using state - of - the - art technology and strict quality control measures. We offer a wide range of options, including different resin systems and fabric finishes, to meet the specific needs of our customers.

We also provide excellent customer service, with a team of experts who can assist you in selecting the right product for your application. Whether you are a small - scale manufacturer or a large - scale industrial user, we can offer competitive pricing and reliable delivery.

Related Products

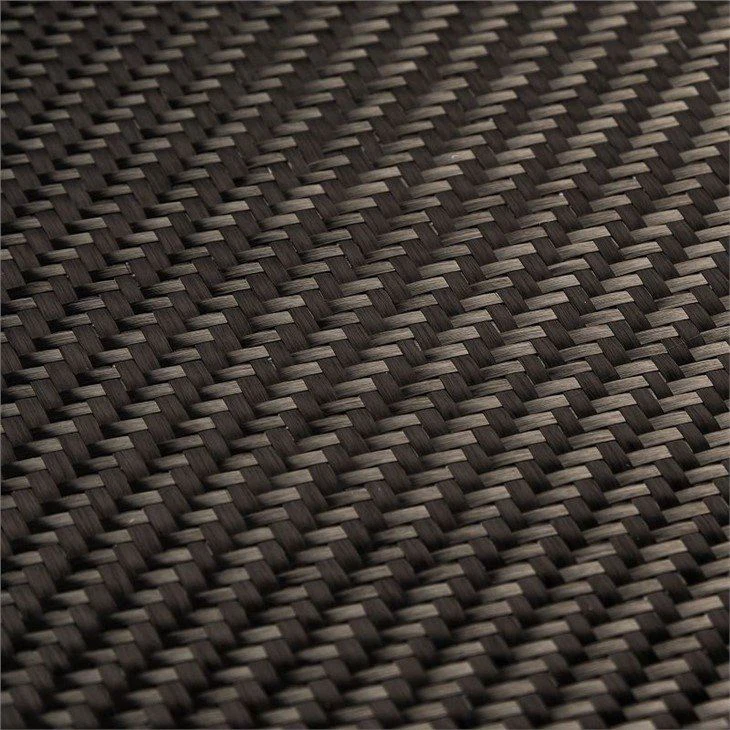

If you are interested in other carbon fiber products, we also offer Twill And Plain Fiber Cloth Roll Carbon Fibre and Black Colour 3K Hexagonal Carbon Fiber Fabric. These products also have unique properties and can be used in various applications. You can learn more about our 3k Carbon Fiber Twill Weave on our website.

Contact Us for Purchase and Negotiation

If you are interested in purchasing 3k Carbon Fiber Twill Weave 200g or have any questions about its bending strength and applications, please feel free to contact us. We are ready to engage in in - depth discussions and provide you with detailed product information and quotations. Our team looks forward to working with you to meet your carbon fiber needs.
